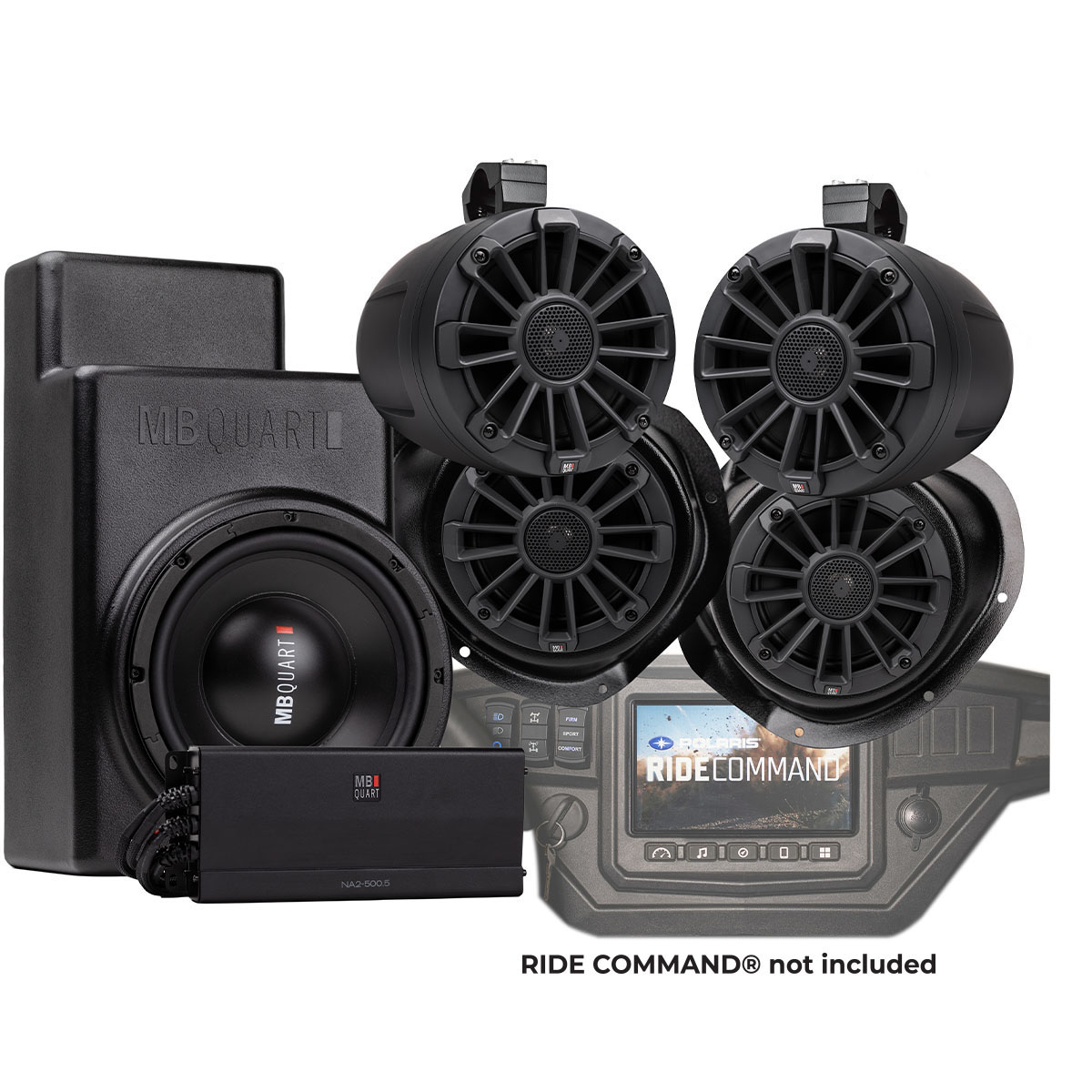

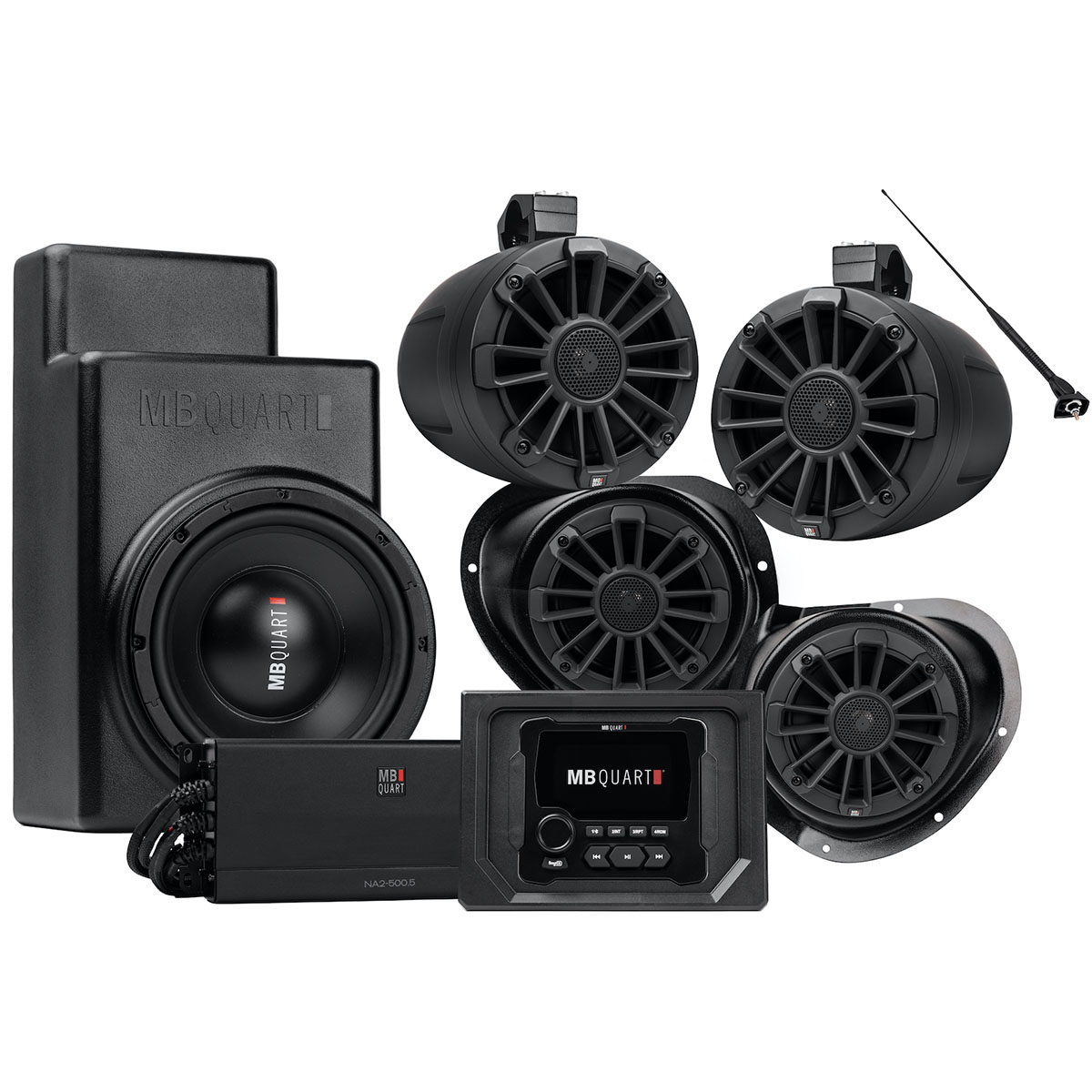

Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
Five Speaker 500 Watt STAGE 5 MB Quart Audio System
SKU: MBQG-STG5-1 Category: Polaris General

$4,299.00

Polaris General 2016-Current UTV Tuned Audio Package: Five Speaker 500 Watt STAGE 5 Audio System includes AM/FM, BT LED Source Unit controlling one amplifier powering 4 coaxial speakers, 10 inch subwoofer in a sealed enclosure. All necessary mounting panels and harnessing are included.

Series

Polaris General Tuned

Colour

Black

Warranty

2 Years

IPX Rating

IPX67

Compatible Vehicles

Polaris General 2016-Current

UTV Kit Total System Power (watts)

500

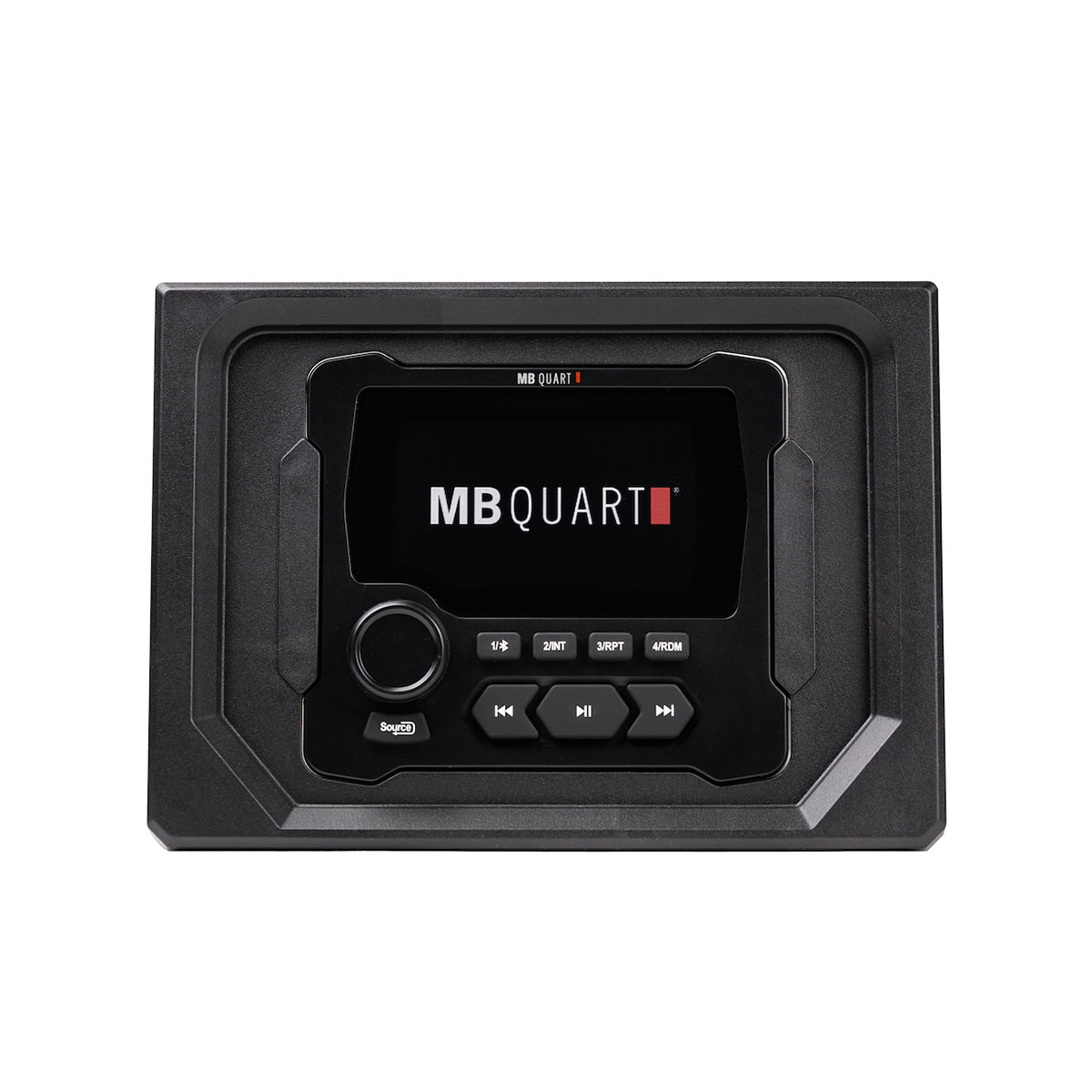

Source Unit

AM/FM, Bluetooth source unit (GMR-LED).

Source Unit Mounting

2016-Current Polaris General mounting panel.

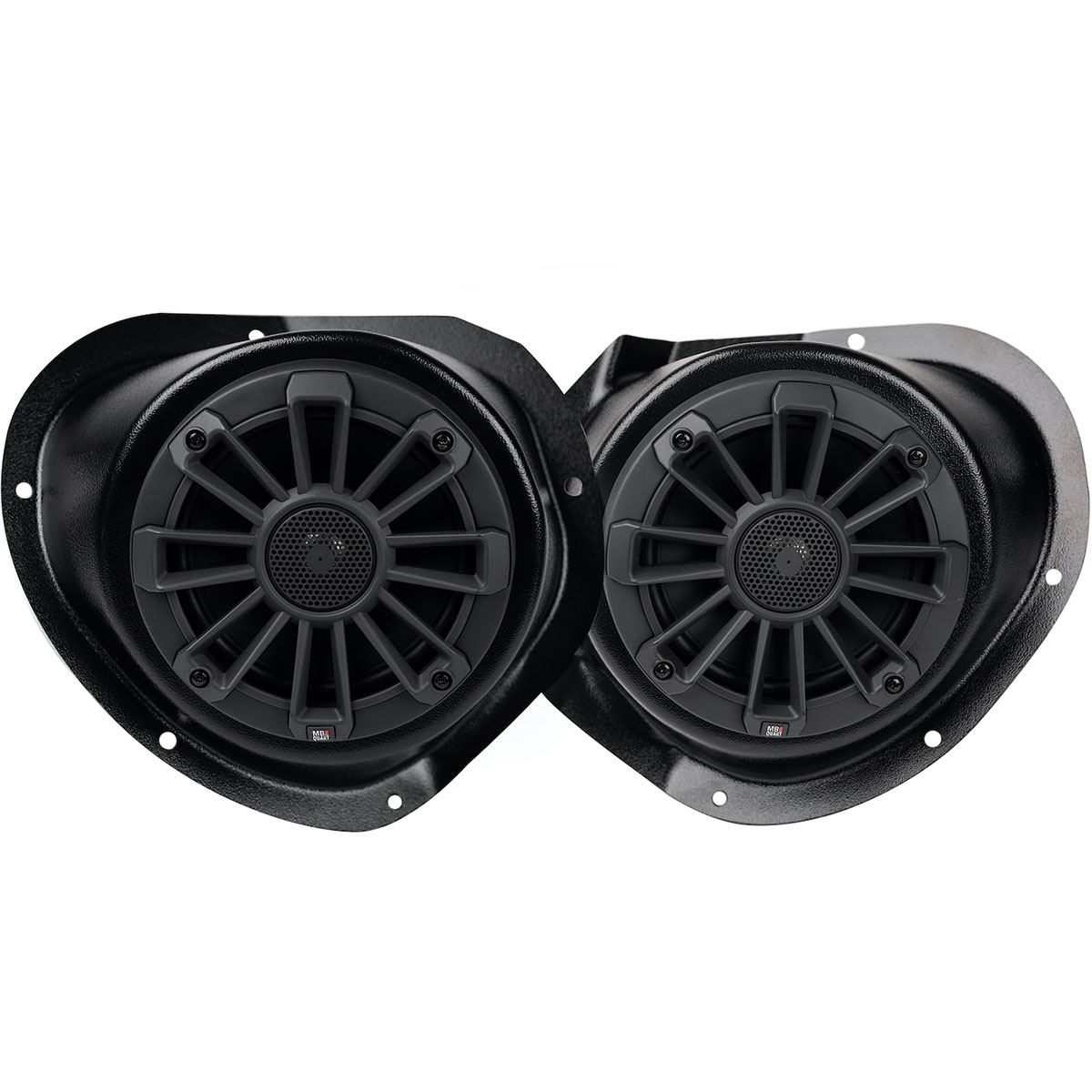

Front Speakers

The front 6.5 inch coaxial speakers are the NP1-116 two way speakers.

Front Speakers Mounting

High impact ABS General specific left & right speaker panels are an ultra-compact design that takes up minimal space.

Rear Speakers

The rear 6.5 inch pod speakers are the NPT1-116BBG two way speakers that feature profile cage mounting hardware.

Rear Speakers Mounting

The rear speaker pods mount to the OEM cage with the included profile cage mounting hardware.

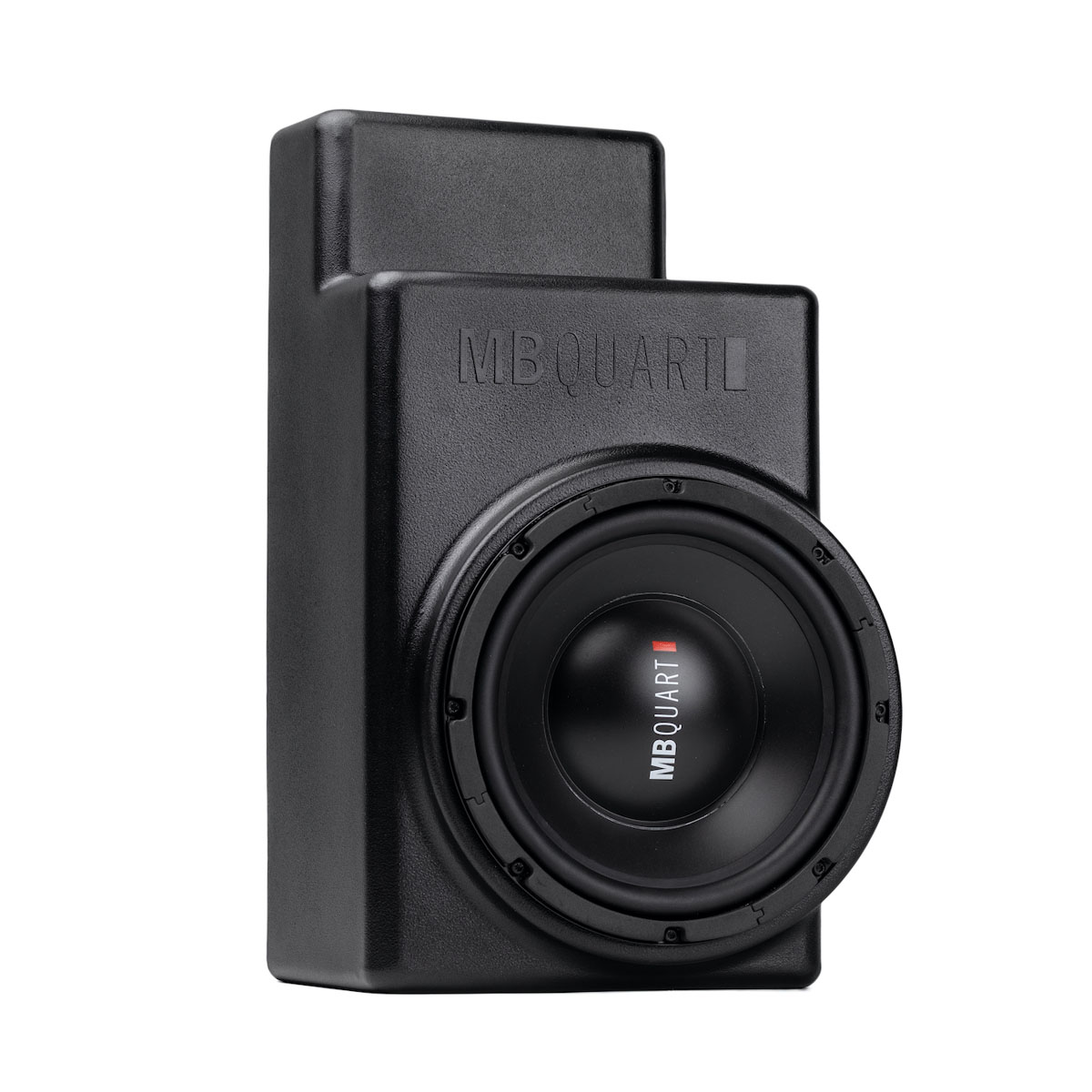

Subwoofer

Dual voice coil 10 inch subwoofer in a high impact HDPE composite enclosure.

Subwoofer Mounting

The subwoofer enclosure fits perfectly in the front dash

Full Range Amplifiers

NA2-500.5: High Efficiency, Full Range 5 Channel Class D 500 Watt Amplifier.

Harnessing

Full system harness capable of accommodating source unit, 1 amplifier, which power 4 speakers, and the subwoofer.

Accessories

MBQG-ACC-1: General Radio and Amplifier Harness is included with the system.

Compatible Vehicle Fitment

Polaris General 2016-Current

Compatible Product Models

Polaris General 2016-Current

Marine Grade Protection / IPX Rating

MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the Polaris General. It is essential that every component installed in a General be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The source unit, speakers, and subwoofer are IPX67 rated. The amplifier is IPX5 rated.

Source Unit Features

QUICK PAIR immediately connects to the last device that was connected and you'll have full Apple Control with Bluetooth capabilities. This unit also displays album artwork, if present, in your file. High voltage output guarantees maximum volume when running external amplifiers.

Speaker Features

These speakers are meticulously engineered to fit in the Polar Ranger. They include a 1" Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly makes it as indestructible as the General.

Amplifier Features

High Efficiency Class D Amplifier Compact Powersports Subwoofer Amplifier.

Subwoofer Features

10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, General Dash Mount Subwoofer Enclosure, powered by the included 500 Watt High Effeciency Full Range 5 Chennel Class D amplifier.

Mount / Harness

Plug and Play Harness. Waterproof Connectors with pre-measured wires. No guesswork, no installation mistakes.

Time and Tools

Standard hand tools are required. See the manual for time on each of the different components.

Supporting Document

Download
