Multimedia Digital Receiver with 160 Watt internal amplifier features AM/FM, Bluetooth, USB.

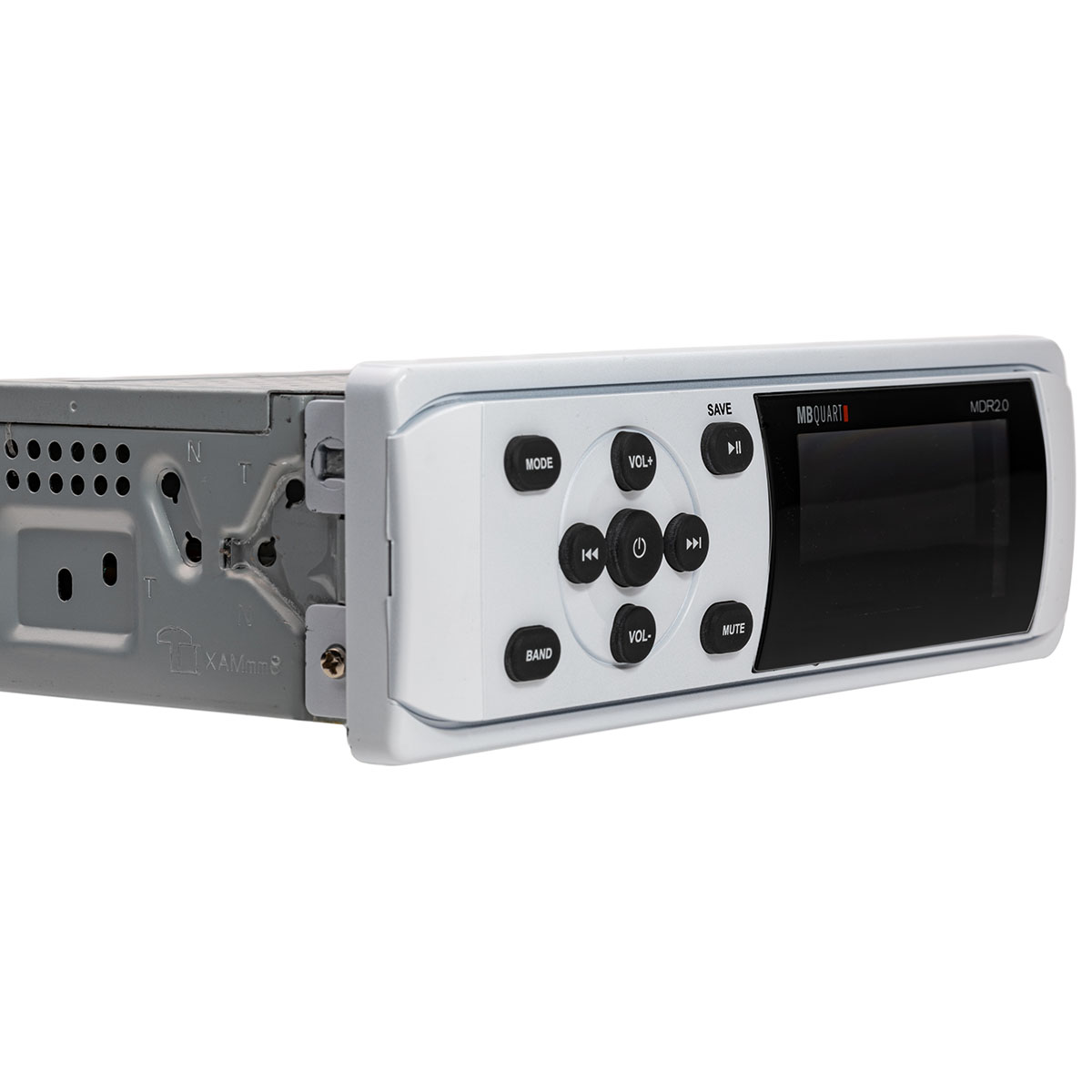

DIN Mechless Marine Radio/Source Unit (White)
DIN Mechless Marine Radio/Source Unit (White)
$299.00
| Series | MDR |
|---|---|
| Color | White |
| Warranty | 1 Year |
| IPX Rating | IPX5 |
| Marine Grade Protection / IPX Rating | Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. |
| Source Unit Tuner Section FM Stereo Frequency Range | 87.5MHz-108MHz |
| Source Unit Tuner Section S/N Ratio | > 55dB |
| Source Unit Bluetooth Range (ft) | 32 |
| Source Unit RMS Power Output (watts) | 4 x 20 |
| Source Unit Peak Power Output (watts) | 4 x 40 |
| Source Unit S/N @1W | 81.2dBA |
| Source Unit Pre-amp Outputs (Y/N #) | 1 Pair |
| Source Unit Pre-amp Voltage | 4.0V |
| Source Unit Minimum Impedance (ohms) | 4 |
| Source Unit Display Type | LCD |
| Source Unit Dimensions Mounting Hole (in) | 7.0 x 2.0 |
| Source Unit Dimensions Total Mounting Depth (in) | 4 |
| Additional Details | MAXIMUM THD+N AT 4 OHMS: 81.2dBA, EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts, SIGNAL TO NOISE (CTA-2006B): -86.2dBA AUX / -66.1dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2 dBA / Aux -86.4dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz10.2kHz USB / 30Hz9.7kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz20.0kHz USB / 30Hz20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -45.60dB @ 5kHz, FM MONO USABLE SENSITIVITY: 3.6V, AM MONO USABLE SENSITIVITY: 17V |
| Apple Control | Quick control and access of iTunes collection with iPhone, iPod and iPad. |
| Source Type | AM/FM/Bluetooth Radio allows all access to radio stations and content from Bluetooth enabled devices. |
| Input Types | Bluetooth, RCA, USB: Nearly nothing the device can not play. |
| Control Buttons | Front facing buttons to engage and adjust all features. |
| Bluetooth Connect | Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. |
| Secure Simple Pairing | Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system |
| Quick-Pair | No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY. |
| Built-In Power | Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. |
| Control Method | 9 control buttons on faceplate. |
| Frequency Range | FM: 87.5-108, AM: 530-1710 |
