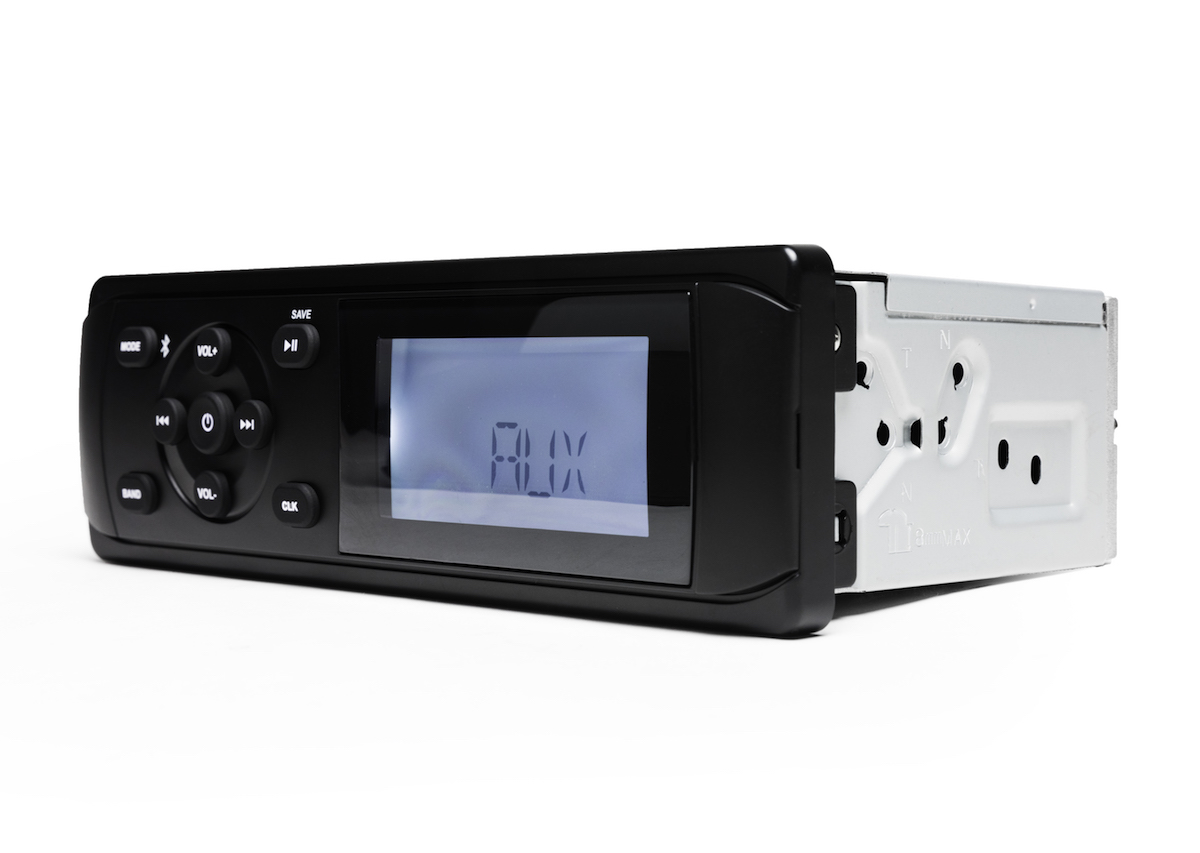

DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
DIN Mechless Marine Radio/Source Unit (Black)
SKU: MBQ-MDR2.0 Category: Source Units

$299.00

Multimedia Digital Receiver with 160 Watt internal amplifier features AM/FM, Bluetooth, USB.

Series

MDR

Color

Black

Warranty

1 Year

IPX Rating

IPX5

Marine Grade Protection / IPX Rating

Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.

Source Unit Tuner Section FM Stereo Frequency Range

87.5MHz-108MHz

Source Unit Tuner Section S/N Ratio

> 55dB

Source Unit Bluetooth Range (ft)

32

Source Unit RMS Power Output (watts)

4 x 20

Source Unit Peak Power Output (watts)

4 x 40

Source Unit S/N @1W

81.2dBA

Source Unit Pre-amp Outputs (Y/N #)

1 Pair

Source Unit Pre-amp Voltage

4.0V

Source Unit Minimum Impedance (ohms)

4

Source Unit Display Type

LCD

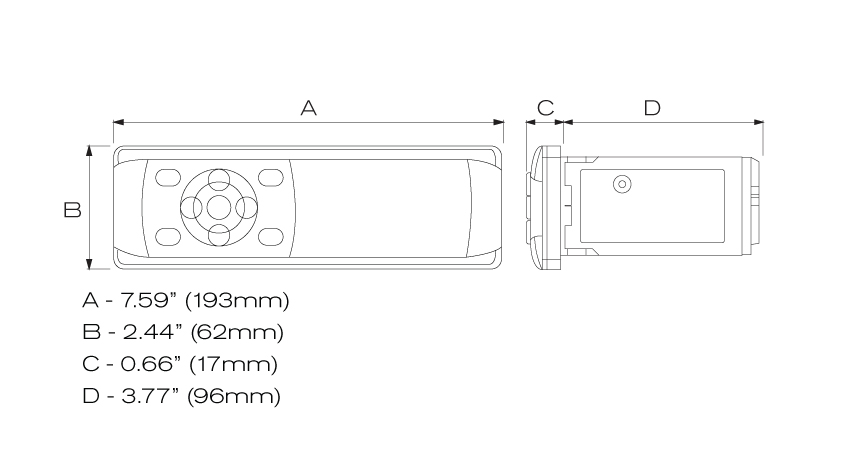

Source Unit Dimensions Mounting Hole (in)

7.0 x 2.0

Source Unit Dimensions Total Mounting Depth (in)

4

Additional Details

MAXIMUM THD+N AT 4 OHMS: 81.2dBA, EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts, SIGNAL TO NOISE (CTA-2006B): -86.2dBA AUX / -66.1dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2 dBA / Aux -86.4dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz10.2kHz USB / 30Hz9.7kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz20.0kHz USB / 30Hz20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -45.60dB @ 5kHz, FM MONO USABLE SENSITIVITY: 3.6V, AM MONO USABLE SENSITIVITY: 17V

Apple Control

Quick control and access of iTunes collection with iPhone, iPod and iPad.

Source Type

AM/FM/Bluetooth Radio allows all access to radio stations and content from Bluetooth enabled devices.

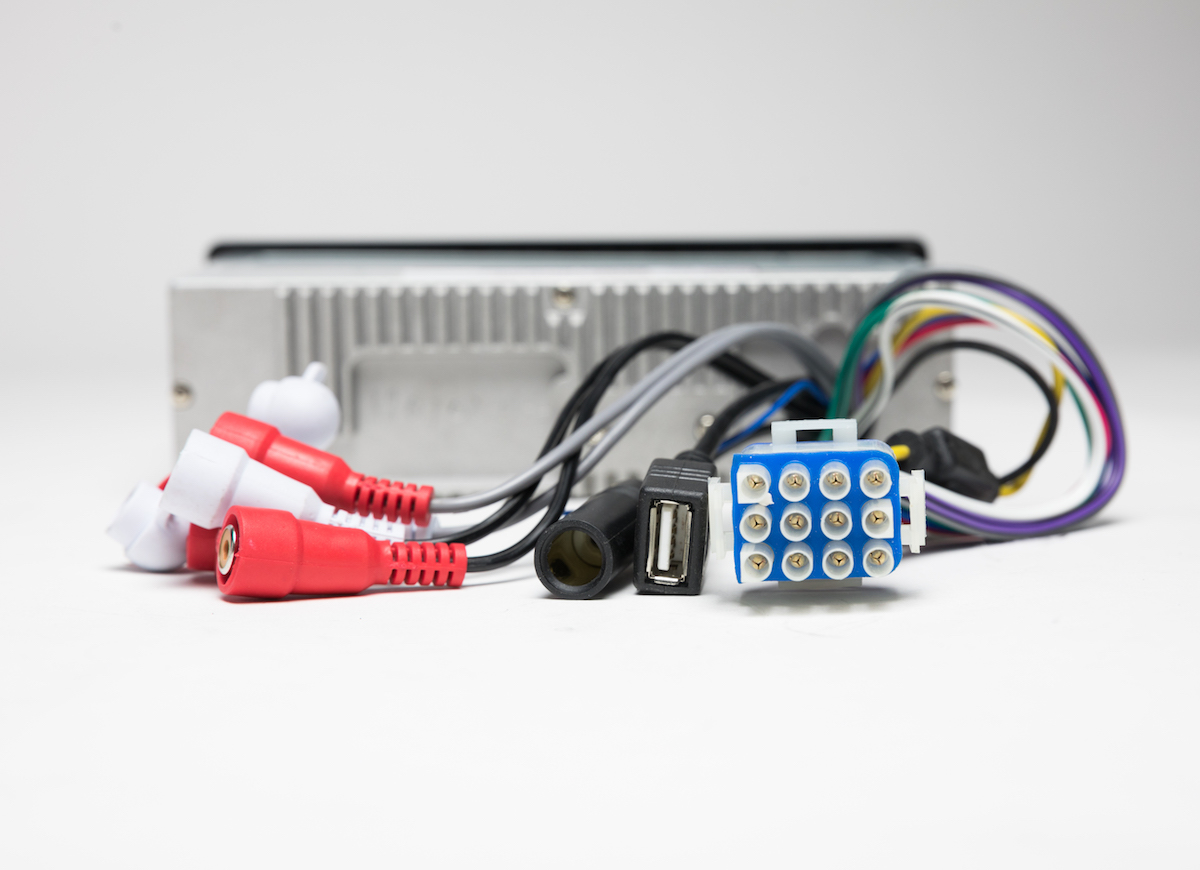

Input Types

Bluetooth, RCA, USB: Nearly nothing the device can not play.

Control Buttons

Front facing buttons to engage and adjust all features.

Bluetooth Connect

Bluetooth Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process.

Secure Simple Pairing

Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system.

Quick-Pair

No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY.

Built-In Power

Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle.

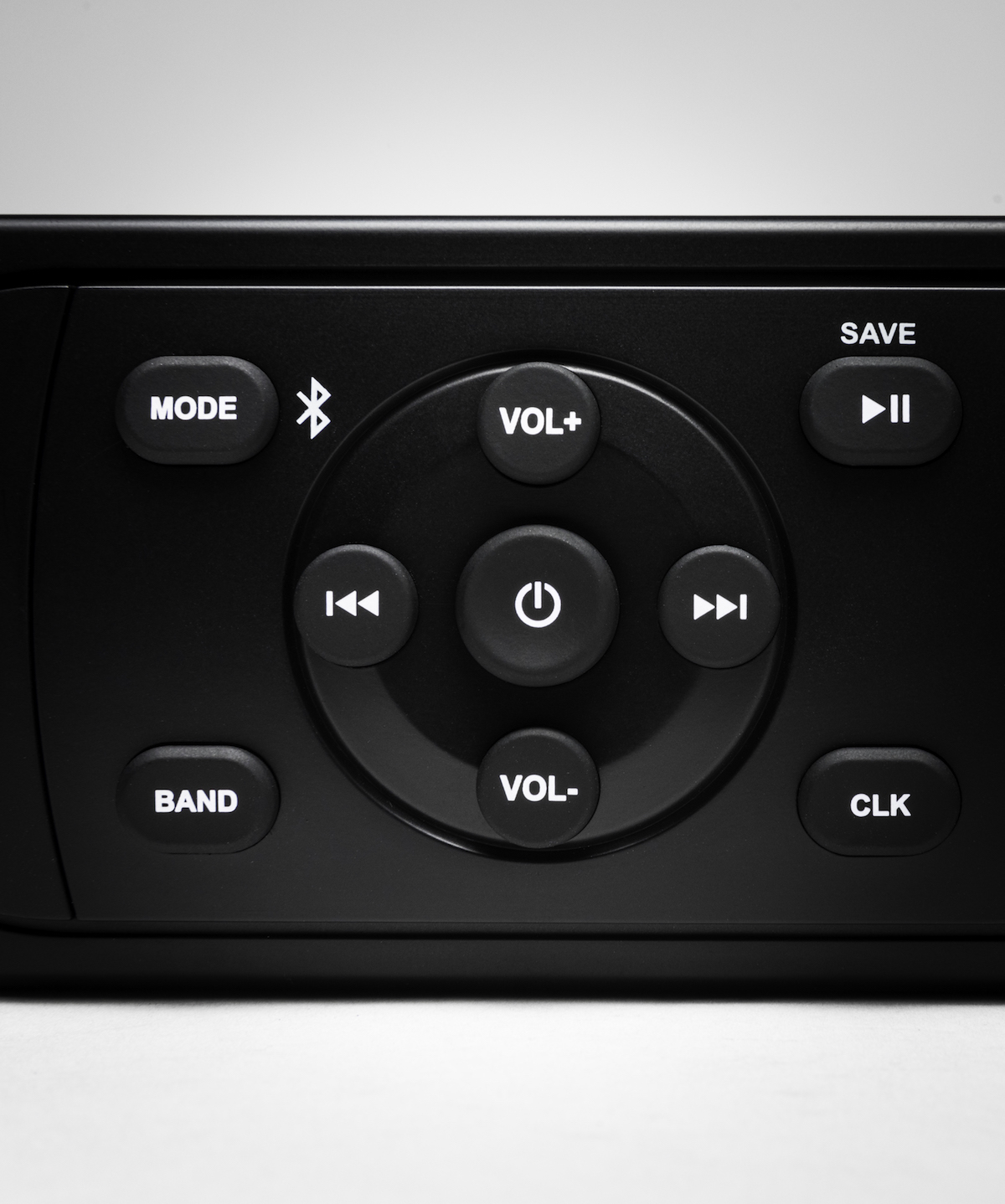

Control Method

9 control buttons on faceplate.

Frequency Range

FM: 87.5-108, AM: 530-1710

Supporting Document

Download

Firmware Update (stm8)

Download
