8″ 2-Way horn loaded Nautic coaxial wake tower speaker
8
8
8
8
8
8
8
8
8
8
8
8

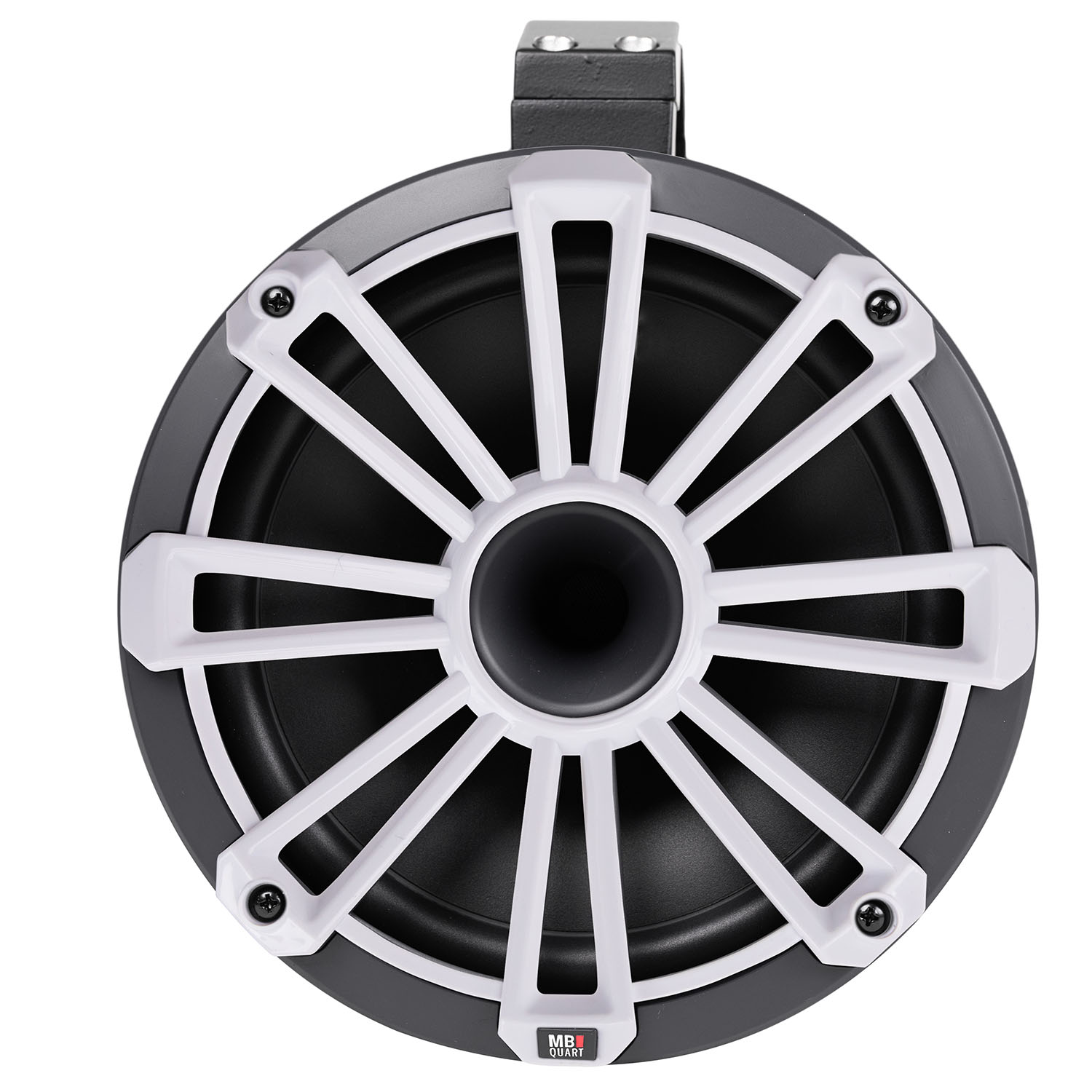

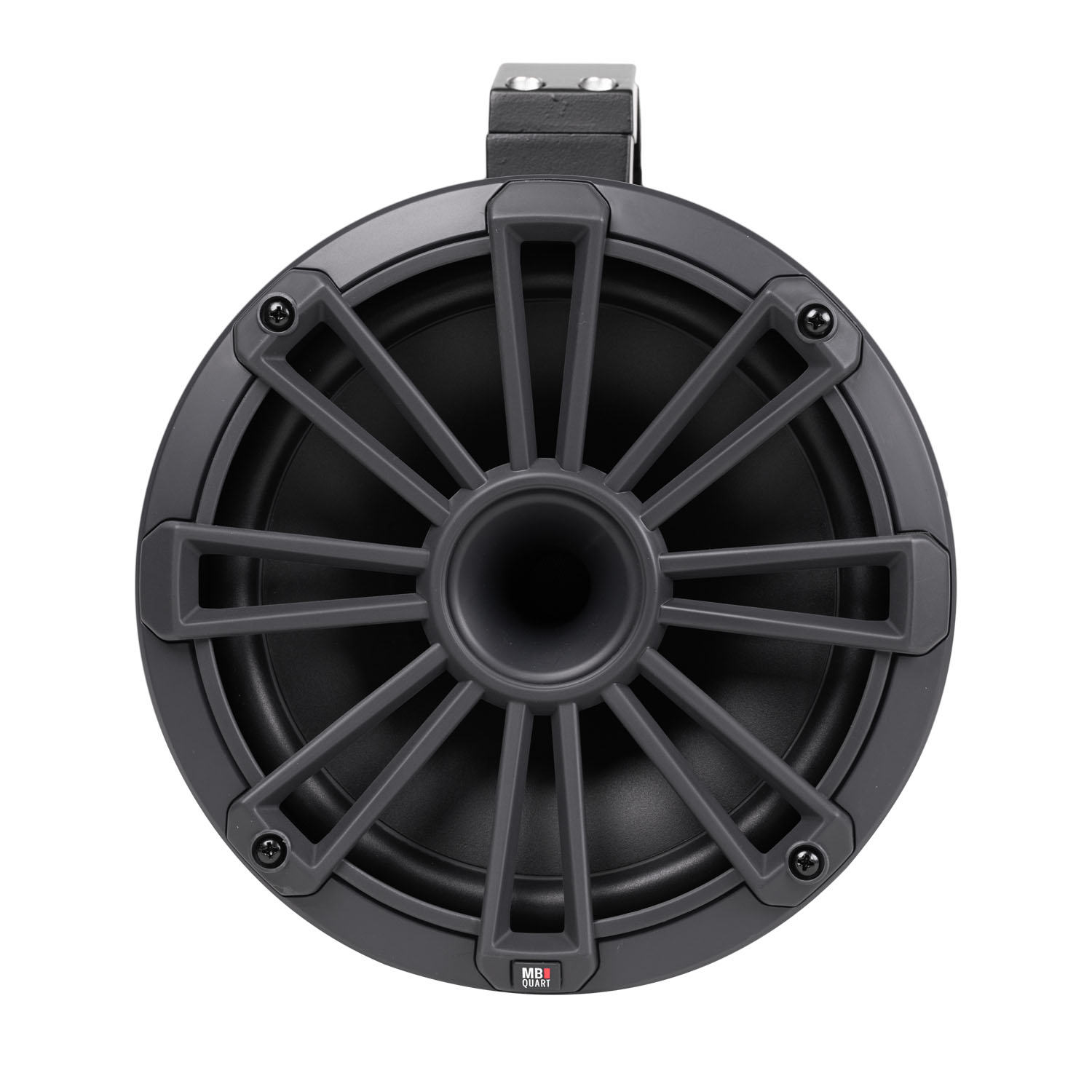

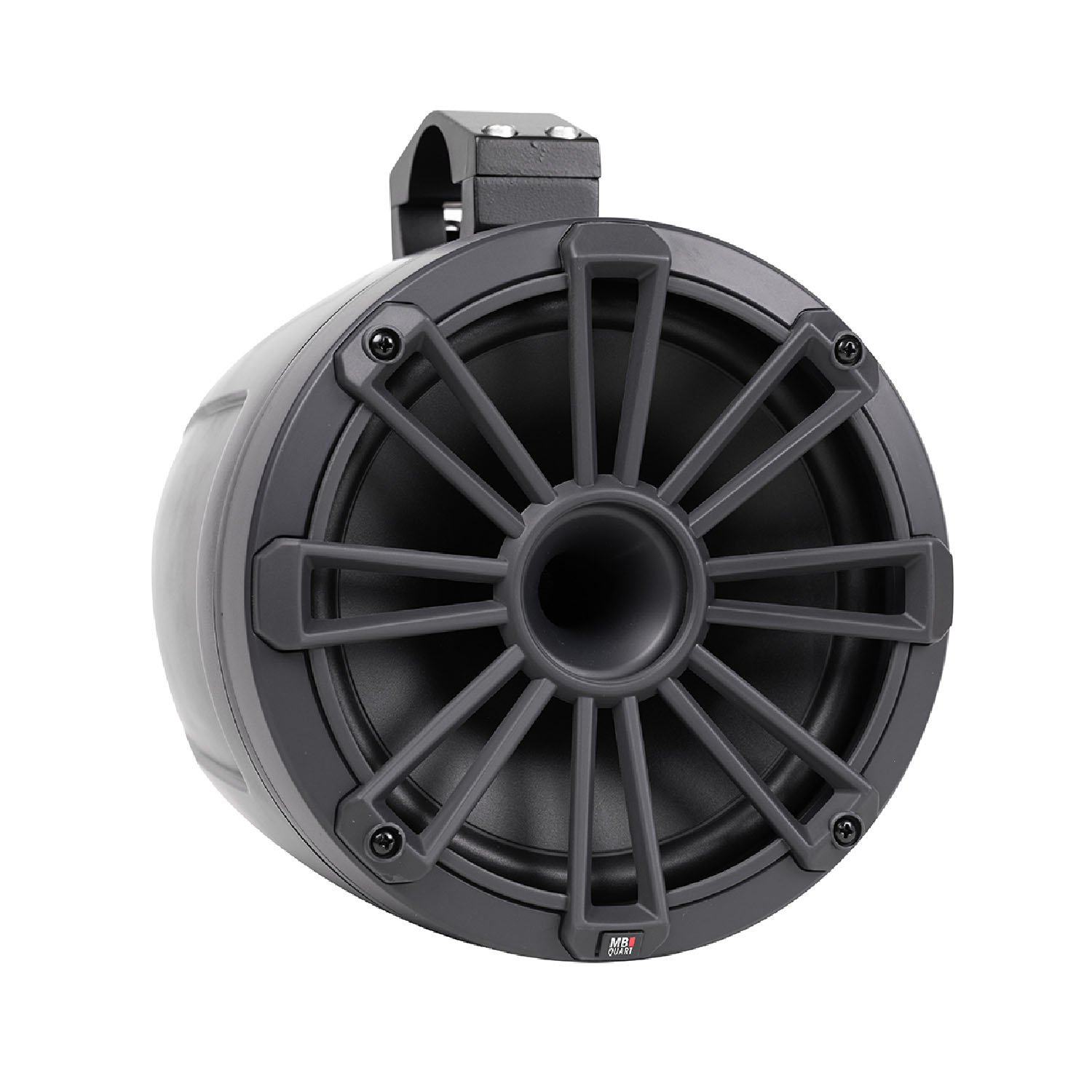

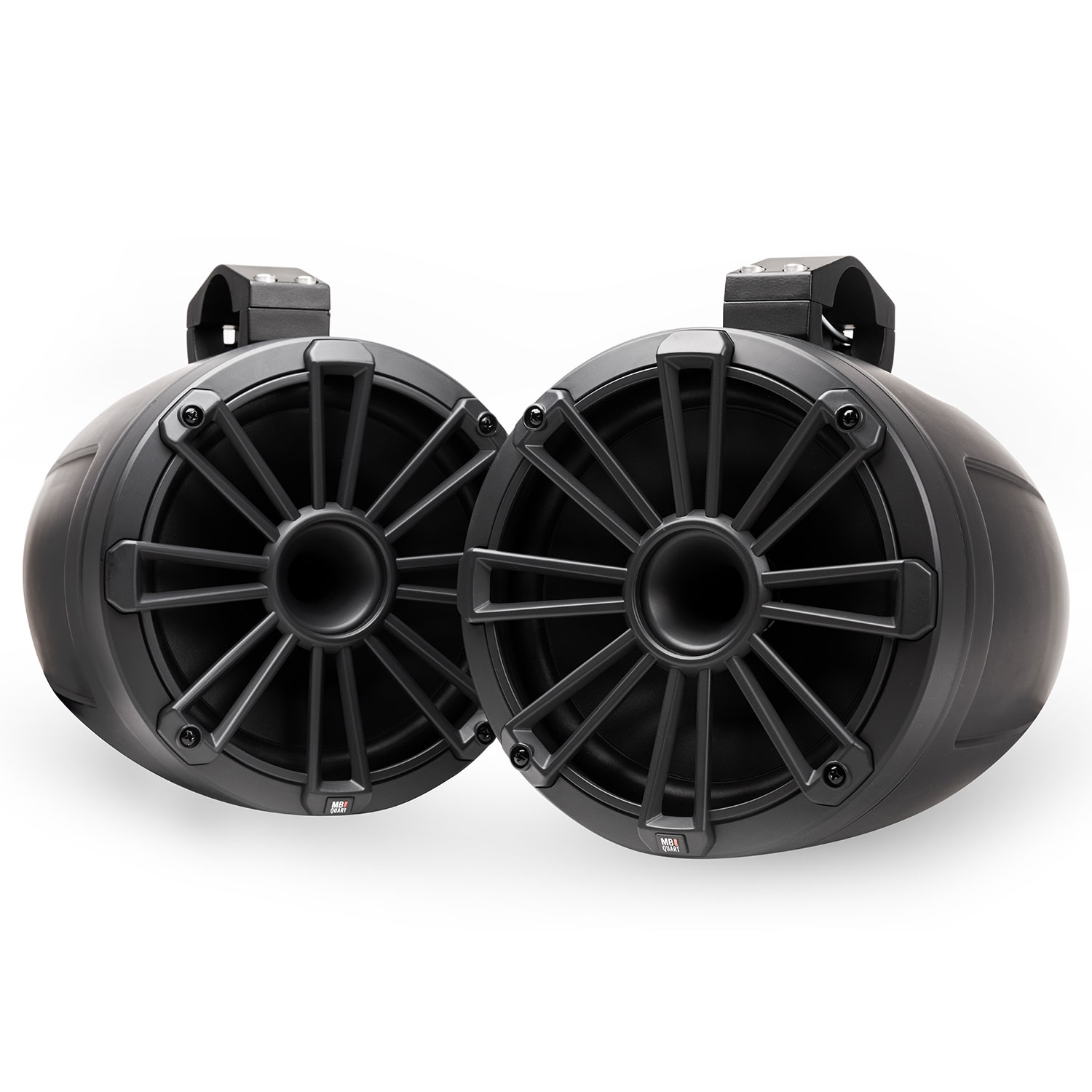

8″ 2-Way horn loaded Nautic coaxial wake tower speaker
SKU: MBQ-NHT2-120 Category: Powersports and Marine Speakers

$869.00

8″ 2-way horn-loaded Nautic coaxial wake tower speaker w/ interchangeable grilles & mounting clamps (pair) 90 watts RMS / 180 watts max

Colour

Black

Warranty

2 Years

Speaker Impedance (ohms)

20Hz-24kHz

Speaker Sensitivity

92dB

Speaker Crossover Slope

92dB

Speaker Tower Length (in)

11.2

Speaker Hang Height (in)

9.035

Speaker Height Inches

8.4

Speaker Width (in)

8.4

Speaker Mounting Diameter / Cut Out (in)

Speaker Outside Diameter (in)

Speaker Mounting Depth / Chassis Depth (in)

Speaker Size (in)

8

Marine Grade Protection / IPX Rating

LIFE SHIELD: Tested to the highest marine and motorsports standards for protection against sun fade, fresh/salt water spray as well as dust and sand.

Tweeters

1 inch pure Titanium dome tweeter for very smooth musical response, high output with minimal required amplifier power.

Cone Material

8 inch Composite Poly Midrange: Water resistant composite polypropylene cone with temperature stable Butyl rubber surround mounted on a lightweight composite frame.

Voice Coil / Former Assembly

High temperature copper voice coil. Voice coil is high temperature copper, wound on a Kapton former which allows the voice coil to handle more power while remaining light in weight.

Spider

Water resistant, woven fiber composite spider to stabilize the cone and voice coil in all musical situations.

Cooling System

Front and rear venting allows air passage through the spider and back plate to exchange air over the voice coil.

Enclosure

Heavy duty injection molded ABS cast enclosure provides strength and improved bass response with increased volume while remaining very lightweight.

External Component Crossover

Marine Certified Crossover: Conformal Coated, Butterworth 12dB per octave crossover with PTC (Positive Thermal Coefficient) tweeter protection. Smooth transition from high to lower frequencies remain musical and not harsh or distorted.

Frame

Composite ABS and glass fiber add strength to the frame without adding distortions or harmonics that can affect the tonal quality of the speaker.

Motor

High energy Y30 strontium ferrite magnet for higher output with minimal amplifier power.

Grills

PERSONALIZED FINISH: The Nautic compression horn speakers are finished in a hardened composite. Each speaker includes three different grills. Black, Silver and White. Many enthusiasts use the white insert to lightly sand and paint to match their personal style and vehicle.

Hardware

Mounting hardware are Die Cast for strength and powder coated to resisted outdoor elements of sun, spray and dust. The mounting system between the pipe mount and the tower enclosure has an internal steel mounting plate for additional strength. Eleven mounting hardware options from 1.5" to 2.75" included. Centering ring allows the speakers to tip left/right when mounted to an arced mount.

Additional Features

Coincident Mounted Compression Horn: Overall volume is improved as much as +5dB over conventional speakers, Wavelength Transparent Acoustic Lens improves midrange frequencies through the cone.

Supporting Document

Download
