75 x 2 RMS POWER @ 4 OHMS
75 watt x 2 Reference Amplifier
75 watt x 2 Reference Amplifier
$339.00
| Colour | Black |
|---|---|
| Warranty | 2 Years |
| Compatible Vehicles | Universal |
| Amp Class | Class SQ (Class D) |
| Amp Total Channels | 2 |
| Amp Max Power (watts) | 150 |
| Amp Power @ 1 Ohm (ch x watts) | – |
| Amp Power @ 2 Ohm (ch x watts) | 2 x 100 |
| Amp Power @ 4 Ohm (ch x watts) | 2 x 50 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 1 x 200 |
| Amp Crossover | Electronic |
| Amp Variable High Pass Crossover 12dB per Octave | CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz |
| Amp Variable Low Pass Crossover 12dB per Octave | CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | 20A External |
| Low Noise Preamplifier Circuit | Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs | Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. |
| High Level Inputs | See Auto-Sense Feature. |
| Operation Mode | 2 Channel |
| Crossover Type | Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. |
| Class / Topology | Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class D amplifiers. |
| Output Device Technology | FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. |
| Heat Sink | Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration. |
| Power Supply | Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system. |

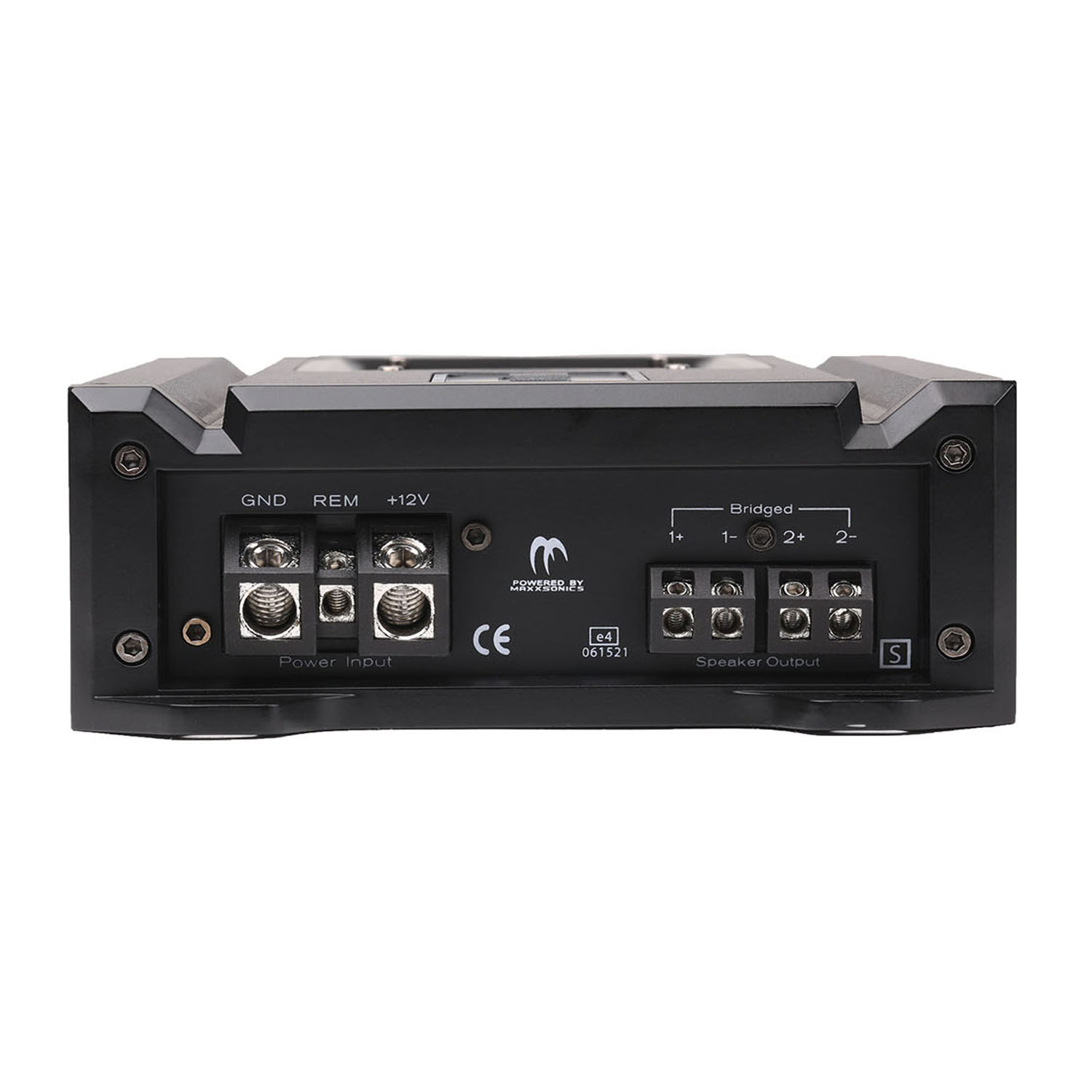

| Output Connections | Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. |
| Connection Type | Secure connection for all power, ground and speaker connections. |
| LED System Protection Circuitry Diagnostics | – |
| Bass Remote Included | – |
| Auto Turn-On | DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
