6X9″ Reference Coaxial 2-Way
6X9
6X9
6X9
6X9
6X9
6X9
6X9
6X9
6X9
6X9
6X9
6X9

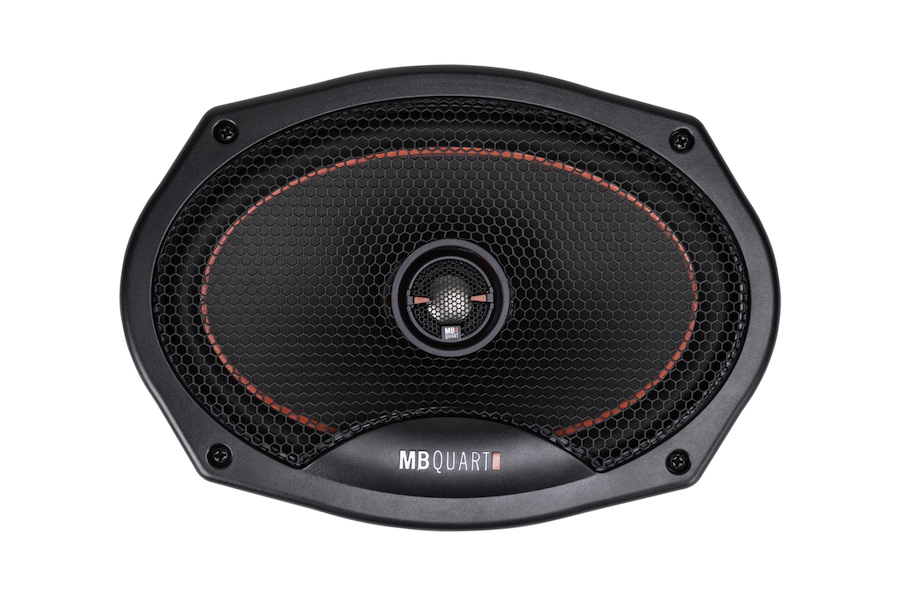

6X9″ Reference Coaxial 2-Way
SKU: MBQ-RK1-169 Category: Reference Series Speakers

$299.00

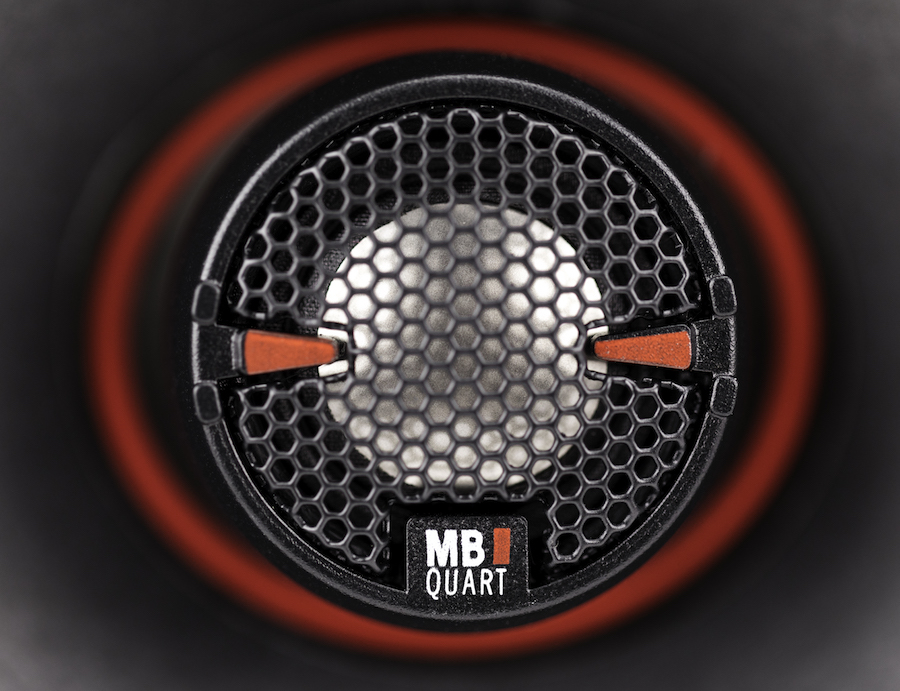

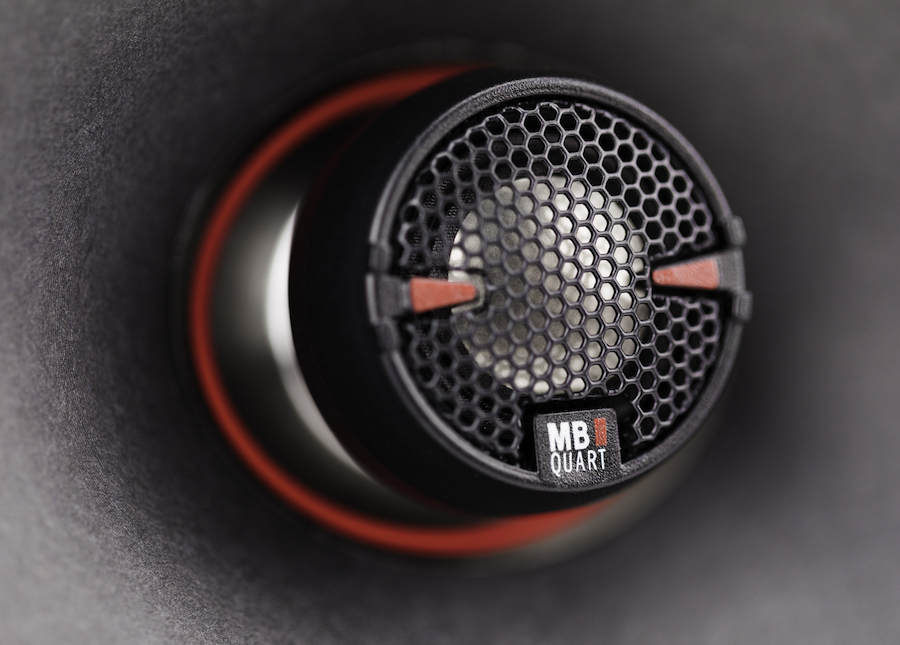

6×9″ Reference Coaxial 2-Way speakers engineered with 3/4″ Titanium dome WideSphere Technology Tweeters with lightweight craft pulp Bamboo fibre cones mounted to an inert frame

Colour

Black

Warranty

2 Years

Speaker RMS Power Handling

50/100 Each & System

Speaker Peak Power Handling (watts)

100/200 Each & System

Speaker Impedance (ohms)

4

Speaker Frequency Response

20Hz-20kHz

Speaker Sensitivity

85.5dB

Speaker Crossover Slope

6dB/Octave

Speaker Height (in)

3.34

Speaker Width (in)

Speaker Mounting Diameter / Cut Out (in)

8.77 x 6.06

Speaker Outside Diameter (in)

9.44 x 6.61

Speaker Mounting Depth / Chassis Depth (in)

2.95

External Component Crossover

Reference coax (2-way) designs feature a built-in audiophile crossover which guides the frequencies from the amplifier to each driver (speaker). This system is designed with tight tolerance components for superb sound quality.

Frame

Aerospace grade PA66 composite with 30% glass fiber speaker frame to assure that no harmonic distortions affect the tone of the speaker.

Grills

Included
