1300 818 622
4 x 50 Watts @ 4 ohms, 4 x 100 Watts @ 2 Ohms
2 x 200 Watts Bridged @ 4 Ohms
400 watt 4 Channel Formula Series Amplifier
400 watt 4 Channel Formula Series Amplifier
$279.00
| Colour | Black |
|---|---|
| Warranty | 2 Years |
| Compatible Vehicles | Universal |
| Amp Class | Class D |
| Amp Total Channels | 4 |
| Amp Max Power (watts) | 400 |
| Amp Power @ 1 Ohm (ch x watts) | – |
| Amp Power @ 2 Ohm (ch x watts) | 4 x 100 |
| Amp Power @ 4 Ohm (ch x watts) | 4 x 50 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 2 x 200 |
| Amp Crossover | Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover 12dB per Octave | 40Hz-400Hz |
| Amp Variable Low Pass Crossover 12dB per Octave | 40Hz-400Hz |
| Amp Fusing | External 40A |
| Low Noise Preamplifier Circuit | Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs | Nickel Plated: High temperature impact resistant nickel-plated RCA inputs that allow for secure connections and is erosion resistant. |
| High Level Inputs | DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
| Operation Mode | 4 channel operation mode allows either stereo or mono bridged operation. |
| Crossover Type | Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. |
| Output Device Technology | FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. |
| Heat Sink | Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. |
| Power Supply | Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to product efficient power without taxing the vehicle electrical system. |
| Output Connections | Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. |
| Connection Type | Secure connection for all power, ground and speaker connections. |

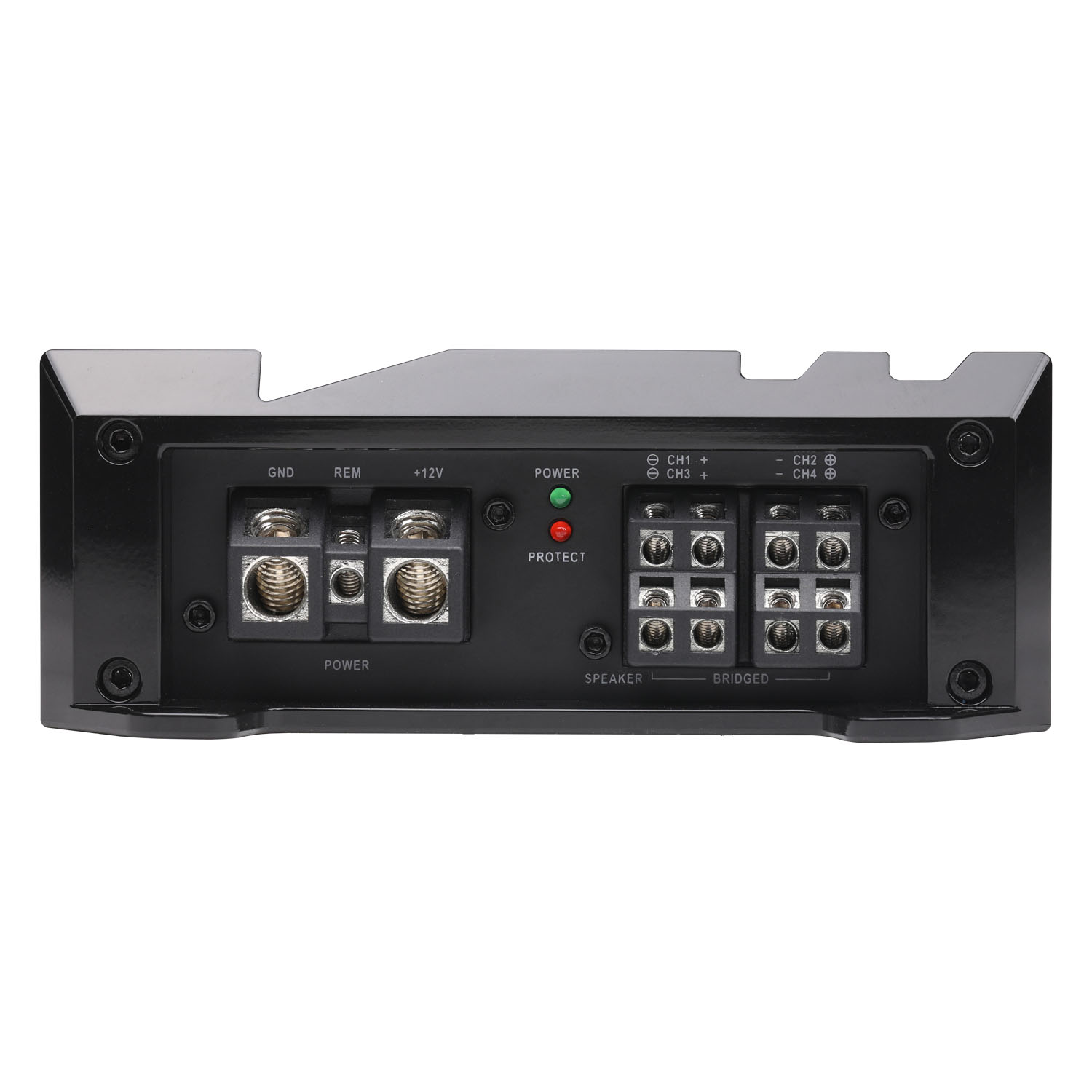

| LED System Protection Circuitry Diagnostics | Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. |
| Auto Turn-On | DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
